LED MODULES

ELITE LED’s partnerships with Samsung and NCLED allow us to leverage their state-of-the-art manufacturing technologies to provide the highest quality LED modules. By combining Samsung’s LED technology with NCLED’s Lens Cover Technology, our LED modules retain their original brightness over many years and spread the light produced over a large area..


Additionally, many of our LED modules are manufactured with UL94-ABS plastic, which have excellent material properties such as: high-impact strength, UV resistance, and excellent surface finish. This translate to very bright LED modules with excellent light coverage. Indoor or outdoor, in the sun or rain, you can trust our LEDs to light up your business or home.

​

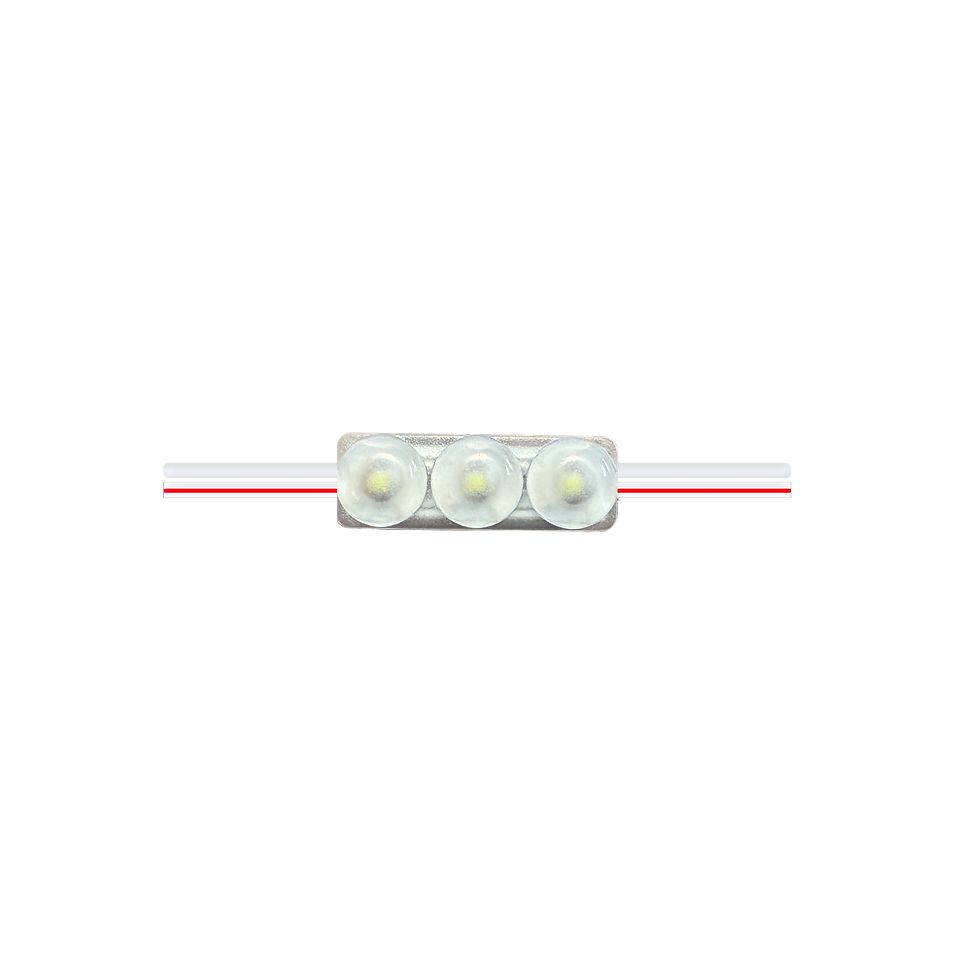

ANS-3WA12-W10

  • SMD2835 Samsung chip

  • Wide angle lense 170°

  • High Power : 1.20W/module

  • 3-LED per module

  • 2-Module per foot

  • Luminous intensity : 105lm

  • Made in Korea

Available in White 10,000K

Specification
White 9,500Kelvin
ANS-3FA12-W10

  • SMD2835 Samsung chip

  • Flat angle lense 140°

  • High Power : 1.20W/module

  • 3-LED per module

  • 2-Module per foot

  • Luminous intensity : 120lm (white)

  • Made in Korea

Available in White 6,500K & 10,000K

White 9,500Kelvin
Specification
ANS-3WA10-W10

  • SMD2835 Samsung chip

  • Flat angle lense 170°

  • High Power : 1.0W/module

  • 3-LED per module

  • 2-Module per foot

  • Luminous intensity : 100lm (white)

  • Made in Korea

Available in White 10,000K

White 9,500Kelvin
Specification
ECO3S LW

  • SMD2835

  • Wide angle lense 150°

  • Power consumption : 0.72W/module

  • 3-LED per module

  • 2-Module per foot

  • Made in Korea

Available in Red, Green, Blue, Warm White, Amber

Red
Green
Blue
Warm White
Amber
Specification
MINI3-LW

  • SMD2835 Samsung

  • Lense covered

  • 3-LED per module

  • 4 modules per foot

  • Power consumption : 0.48W/module

  • Luminous intensity : 44lm (white)

  • Made in Korea

Available in White 9,500K, Red, Blue, Warm White, Amber

White 9,500Kelvin
Red
Blue
Warm White
Amber
Specification
LX-ECO2S

  • SMD2835 Samsung

  • Lense covered

  • 2-LED per module

  • 3 modules per foot

  • Power consumption : 0.48W/module

  • Luminous intensity : 38lm (white)

  • Made in Korea

Available in Green, Amber

Green
Amber
Specification
LX-RGB3-LW

  • SMD5050 chip

  • RGB multi-color LED module

  • Lense covered 120° wide-angle

  • 3-LEDs per module

  • Made-in-Korea

Multi-color RGB
Specification
